Routes features based on user-defined numeric value ranges.
- Classifying features based on value ranges for symbolization or other further processing in the workspace
- Filtering out features that fall within a specific range of values
How does it work?
The AttributeRangeFilter lets you define one or more numeric ranges, each of which becomes an output port. An attribute is selected to be compared against these ranges, and output via the first matching range’s port.
If the attribute value does not fall within any of the defined ranges, it is output via the <Unfiltered> port.
Ranges are inclusive. A value that could match more than one range will be output via the first one it encounters. Ranges are tested in the order they are defined in the parameters dialog, Range Lookup Table. For example, given the ranges 1 - 10 and 10 - 20, the value 10 will be matched to whichever of these ranges is listed first in the lookup table.
If either From or To is left blank, the range is open-ended; that is, it will match any value greater than (if To is blank) or less than (if From is blank) what is specified.
You may automatically generate fixed-interval ranges using the Generate… option.

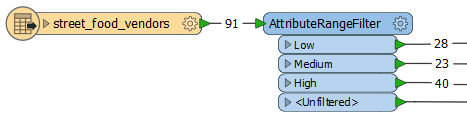

In this example, we want to categorize food vendors by the amount of daily traffic they have. The features are routed into an AttributeRangeFilter.

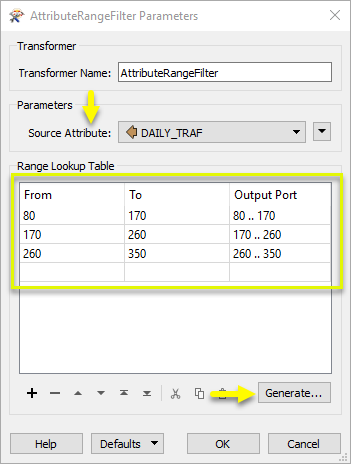

In the parameters dialog, we use the Generate… option to calculate three equal-interval ranges, based on our knowledge of the upper and lower limits of the daily traffic attribute values.
The intervals are calculated and added to the Range Lookup Table, with output ports automatically named. Note we have also selected the DAILY_TRAF attribute as our Source Attribute for categorization.

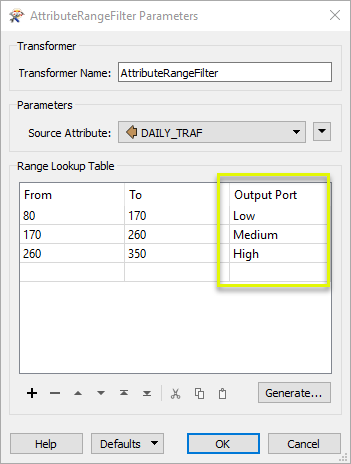

Lastly, we will overwrite the auto-generated Output Port names with meaningful names.

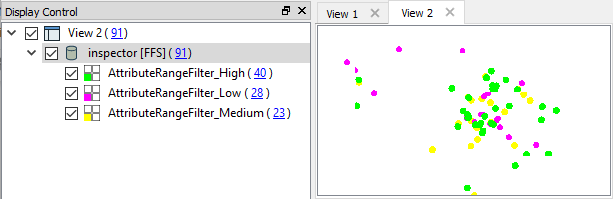

The features are output via the appropriate range’s Output Ports.
- Only numeric ranges are supported
- Expressions are not supported
- To add an attribute classifying features according to numeric ranges (as opposed to routing/filtering them), consider using the AttributeRangeMapper.
Features with attributes to be filtered.
Output ports are added for each defined range name. Features that match a range are output via the appropriate port.
If the feature’s attribute has a value that does not match any of the given ranges, or the attribute is not present, the feature is output via the <Unfiltered> port.
|Source Attribute||The attribute to be matched against range(s).|
This table specifies a set a ranges and the port that a feature will be sent to if the Source Attribute value is within that range.
|From||The lower limit of the range (inclusive). Open-ended if left blank.|
|To||The upper limit of the range (inclusive). Open-ended if left blank.|
|Output Port||Name the output port for each range. Names will be automatically generated if using the Generate… option, and can be overwritten.|
To automatically generate a set of ranges:
- Click the Generate button to start the generation wizard.
- Choose the minimum and maximum values of the attribute.
- Choose the number of ranges you would you want to generate. The ranges will be equally spaced between the specified minimum and maximum values.
- Select the Include Open-ended Ranges checkbox to create two additional ports for values that are smaller than the minimum value or larger than the maximum value.
