RasterResampler

Resamples rasters, based on specified output dimensions, cell size in ground units, or percentage of original, by interpolating new cell values.

Jump to Configuration

Typical Uses

Reducing raster resolution (by reducing the number of cells and increasing cell size)
Coercing a raster to specific dimensions or cell (pixel) size for further processing purposes or to match other data
Creating thumbnail images of rasters

How does it work?

The RasterResampler accepts raster features and alters the number of rows/columns and resizes cell (pixel) size according to the parameter selections. One raster feature is output for each input feature.

Output raster resolution may be specified by set dimensions (columns and rows), cell size in ground units, or percentage of original resolution.

A variety of methods are available for output cell value interpolation.

This transformer is unaffected by raster band and palette selection.

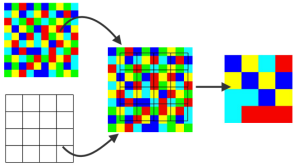

A: Original resolution

B: Desired resolution

C: Desired resolution compared to original

D: Resampled output raster

Examples

Usage Notes

To resize rasters (clipping or padding) without changing the cell size, consider using the RasterSubsetter
To resample rasters to multiple sizes, consider using the WebMapTiler or the RasterPyramider.
To split rasters in multiple smaller rasters without changing the cell size, consider using the RasterTiler.
Although this transformer can be used to increase raster resolution, usually there is little benefit in doing so (with an exception being to match the resolution of other raster data for processing purposes).

Choosing a Raster Transformer

FME has an extensive selection of transformers for working with raster data. They can be generally categorized as working with whole rasters, bands, cells or palettes, and those designed for workflow control or combining raster with vector data.

For information on raster geometry and properties, see Rasters (IFMERaster).

Raster Transformers

Working with Rasters

These transformers generally apply to whole rasters.

RasterCellOriginSetter	Sets the cell origin point within cells in a raster.
RasterConvolver	Applies a convolution filter (sometimes called a kernel or lens) to raster features and outputs the results.
RasterDiffuser	Enhances the features of a raster image. The RasterDiffuser enhances the borders, lines, and curves while reducing noise in the flat areas of the raster image.
RasterExpressionEvaluator	Evaluates expressions on each cell in a raster or pair of rasters, including algebraic operations and conditional statements.
RasterExtentsCoercer	Replaces the geometry of input raster features with a polygon covering either the extents of a raster or the extent of data within a raster.
RasterGCPExtractor	Extracts Ground Control Point (GCP) coordinate system and point values from a raster feature and exposes them as attributes.
RasterGCPSetter	Sets Ground Control Points (GCPs) on a raster, pairing cell positions with known coordinates.
RasterGeoreferencer	Georeferences a raster by either known corner coordinates or origin, cell size, and rotation.
RasterHillshader	Generates a grayscale shaded relief representation of terrain, based on elevation values.
RasterInterpretationCoercer	Alters the interpretation type of rasters, including all bands, and converts cell values if necessary.
RasterMosaicker	Merges multiple raster features into a single raster feature.
RasterPropertyExtractor	Extracts the geometry properties of a raster feature and exposes them as attributes.
RasterPyramider	Resamples rasters to multiple resolutions, based on either number of levels or dimensions of the smallest output raster.
RasterRegisterer	Transforms an image to minimize its difference with another.
RasterResampler	Resamples rasters, based on specified output dimensions, cell size in ground units, or percentage of original, and interpolates new cell values.
RasterRotationApplier	Rotates a raster feature according to its rotation angle property, interpolating new cell values, updating all other affected raster properties, and producing an output raster feature with a rotation angle of zero.
RasterSubsetter	Clips raster features using pixel bounds instead of ground coordinates, and optionally adds cells around the perimeter.
RasterTiler	Splits each input raster into a series of tiles by specifying either a tile size in cells/pixels or the number of tiles.
RasterToPolygonCoercer	Creates polygons from input raster features. One polygon is output for each contiguous area of pixels with the same value in the input raster.
WebMapTiler	Creates a series of image tiles that can be utilized by web mapping applications such as Bing™ Maps, Google Maps™, or Web Map Tile Service. This is done by resampling rasters to various different resolutions and then splitting them into tiles.

Working with Bands

These transformers generally apply to bands.

RasterBandAdder	Adds a new band to a raster feature.
RasterBandCombiner	Merges coincidental raster features into a single output raster feature, preserving and appending all bands.
RasterBandInterpretationCoercer	Alters the interpretation type of individual raster bands, converting cell values if necessary.
RasterBandKeeper	Removes all unselected bands from a raster feature.
RasterBandMinMaxExtractor	Extracts the minimum and maximum band values, palette keys, and palette values from a raster feature, and adds them to a list attribute.
RasterBandNameSetter	Sets the band name of selected bands on a raster, making raster contents simpler to understand compared to band numbers.
RasterBandNodataRemover	Removes the existing Nodata identifier from selected bands of a raster feature. Any values previously equal to the Nodata value are considered valid data.
RasterBandNodataSetter	Sets a new Nodata value on selected bands of a raster feature.
RasterBandOrderer	Specifies the required order of bands in a raster. Bands are reordered according to the input band indices.
RasterBandPropertyExtractor	Extracts the band and palette properties of a raster feature and exposes them as attributes.
RasterBandRemover	Removes any selected bands from a raster feature.
RasterBandSeparator	Separates bands or unique band and palette combinations, and outputs either individual raster features or a single new raster feature containing all combinations.
RasterStatisticsCalculator	Calculates statistics on raster bands and adds the results as attributes.

Working with Cells

These transformers generally apply to individual cells.

RasterAspectCalculator	Calculates the aspect (direction of slope) for each cell of a raster. Aspect is measured in degrees from 0 to 360, clockwise from north.
RasterCellCoercer	Creates individual points or polygons for each cell in a raster, optionally extracting band values as z coordinates or attributes.
RasterCellValueCalculator	Evaluates basic arithmetic , minimum, maximum or average operations on the cell values of a pair of rasters.
RasterCellValueReplacer	Replaces a range of band values in a raster with a new single value.
RasterCellValueRounder	Rounds off raster cell values.
RasterSegmenter	Partitions a raster image into arbitrarily sized groups of cells from the input image based on intensity differences in the input raster image cells.
RasterSingularCellValueCalculator	Performs basic arithmetic operations on the cell values of a raster against a numeric value.
RasterSlopeCalculator	Calculates the slope (maximum rate of change in z) for each cell of a raster.

Working with Palettes

These transformers generally apply to palettes.

RasterPaletteAdder	Creates a palette from an attribute, and adds this palette to all selected bands on a raster.
RasterPaletteExtractor	Creates a string representation of an existing palette on a raster and saves it to an attribute.
RasterPaletteGenerator	Generates a palette out of the selected band(s) of a raster. The output raster will have the selected band(s) replaced by a new band with a palette.
RasterPaletteInterpretationCoercer	Alters the interpretation type of raster palettes.
RasterPaletteNodataSetter	Identifies the palette key that matches a raster band’s Nodata value, and sets a value on it.
RasterPaletteRemover	Removes selected palette(s) from raster features.
RasterPaletteResolver	Resolves the palette(s) on a raster by replacing cell values with their corresponding palette values. Palette values with multiple components, such as RGB, are broken down and the individual values assigned to multiple, newly-added bands.

Workflow Control

These transformers generally control the flow of features in a workspace.

RasterCheckpointer	Forces accumulated raster operations to be processed, saving the state to disk and releasing resources to tune performance or assist with memory limitations.
RasterConsumer	Reads raster features for testing purposes, including any accumulated raster operations. No additional operations are performed, and nothing is done with the features.
RasterExtractor	Serializes the geometry of a raster feature into a Blob attribute, encoding the contents according to a choice of common binary raster formats.
RasterNumericCreator	Creates a numeric raster of specified size and resolution, with default cell values.
RasterReplacer	Decodes a binary attribute containing encoded rasters stored as Blobs, replacing the feature’s geometry with the decoded raster.
RasterRGBCreator	Creates a color raster feature of specified size, resolution, and interpretation type, with default cell values.
RasterSelector	Selects specific bands and palettes of a raster for subsequent transformer operations.

Vectors and Rasters

These transformers generally involve using rasters and vector data together.

ImageRasterizer	Creates a raster representation of vector or point cloud input features, using the fme_color attribute over a solid background fill for vector features. Point clouds may be rendered using their color or intensity components.
NumericRasterizer	Creates a numeric raster representation of vector or point cloud input features, where cell values are taken from the z coordinates of the input features and overlaid on a uniform background.
MapnikRasterizer	Generates a raster from input vector and raster features, with fine control over symbolization and labeling, using the Mapnik toolkit.
PointCloudOnRasterComponentSetter	Sets point cloud component values by overlaying a point cloud on a raster. The component values for each point are interpolated from band values at the point location.
PointOnRasterValueExtractor	Extracts the band and palette values from a raster at the location of one or more input points and sets them as attributes on the feature.
RasterDEMGenerator	Produces a raster digital elevation model (DEM) by uniformly sampling a Delaunay triangulation generated from input points and breaklines.
VectorOnRasterOverlayer	Rasterizes vector or point cloud features onto an existing raster. For vector features the fme_color attribute sets pixel color, and point clouds may be rendered using their color or intensity components.

Configuration

Input Ports

Output Ports

Parameters

Raster Size

Resolution Specification

Select a method for specifying output raster size. Options include:

Rows and Columns	Define the resolution of the output raster by number of rows and columns, and calculate the corresponding appropriate cell size.
Cell Spacing	Define the resolution of the output raster by desired cell (pixel) size, and calculate the corresponding appropriate number of rows and columns.
Percentage	Calculate resolution and cell size as a percentage of the input feature’s original size.

Number of Columns (cells)

If Resolution Specification is Rows and Columns, specify the desired raster width in cells (pixels).

Number of Rows (cells)

If Resolution Specification is Rows and Columns, specify the desired raster height in cells (pixels).

X Cell Spacing

If Resolution Specification is Cell Spacing, specify the desired cell (pixel) width in ground units.

Y Cell Spacing

If Resolution Specification is Cell Spacing, specify the desired cell (pixel) height in ground units.

Percentage

If Resolution Specification is Percentage, specify the desired percentage. This number must be greater than 0, and may be greater than or less than 100.

100 is equal to the input size.

Interpolation

Interpolation Type

Cell values are interpolated to produce various raster sizes and resolutions. Choose a method:

Nearest Neighbor	The simplest and fastest method. Values are copied from the nearest cell.
Bilinear	Calculates a weighted average, adjusted for distance, from the four (4) nearest cells.
Bicubic	Calculates a weighted average, adjusted for distance, from the sixteen (16) nearest cells.
Average 4	Calculates a simple average from the four (4) nearest cells. Similar to Bilinear and is useful for numeric rasters such as DEMs.
Average 16	Calculates a simple average from the sixteen (16) nearest cells. Similar to Bicubic and is useful for numeric rasters such as DEMs.
