Writing to a Zip File
FME can write output datasets directly into a zip folder. This is useful for when the output needs to be compressed to a smaller storage size, or when a folder-based dataset (such as Esri Shapefile) is comprised of several files that need to be stored together.
Defining a zipped output dataset is as simple as setting a
.zip extension in the output dataset name. For convenience, when the chosen format supports this feature, a Zip button is displayed beside the Dataset parameter.
- Set the output format.
- Type the Dataset name with a
.zipextension, or click the Zip button:
The Zip button automatically adds the
.zip extension to the Dataset parameter.
- Locate and double-click the Destination dataset parameter in the Navigator window.

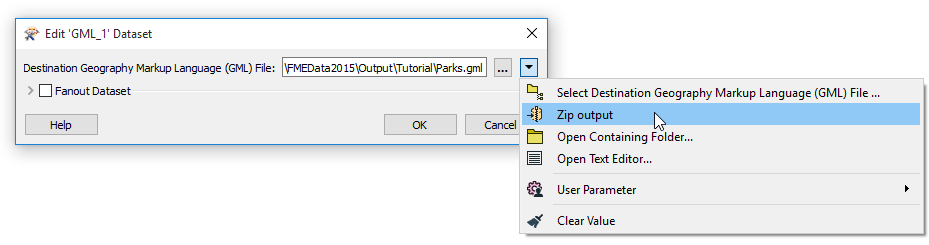

- Choose the Zip option. The option will appear either as a button on the dialog, or, if the dataset is linked to a user parameter, as an option in the parameter menu:
Formats that support multiple file extensions may require that you specify a file extension following the zip filename.
The Generic Writer integrates with zip writing by creating a zip file that contains any specified file/folder format.
Dataset Fanout integrates with zip writing by allowing you to write multiple datasets to the same zip file. To create a fanned-out zip file, simply ensure that the Destination Fanout Directory parameter ends with the
.zip file extension.
Writing a password-protected zip file is not currently supported.
