2DBoxReplacer

Replaces feature geometry with a 2D box defined by specified minimum and maximum x and y values.

Typical Uses

Creating search envelopes
Creating clip boundaries

How does it work?

The 2DBoxReplacer receives features of any kind and replaces their geometry with 2D boxes as specified in parameters.

The parameters describe rectangular geometry with minimum and maximum x and y values, representing the box's lower left and upper right corners, in the ground units of the feature’s coordinate system.

Values may be entered directly or provided via attributes, parameters, or expressions.

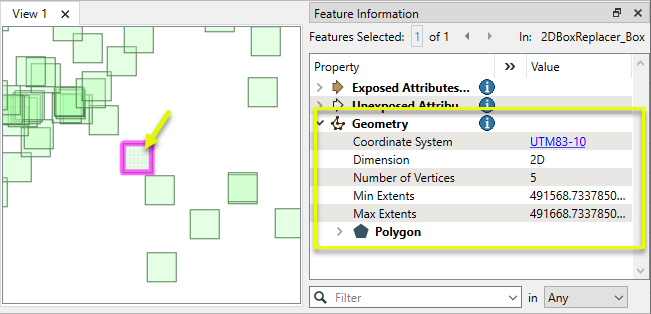

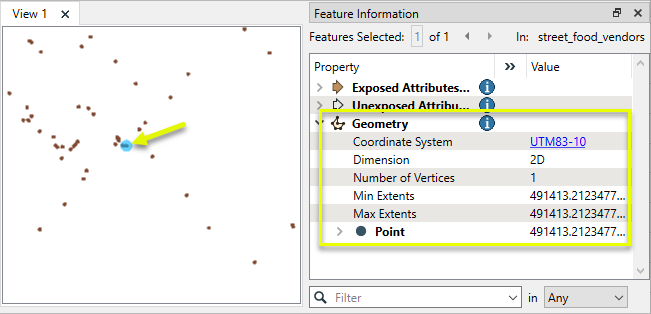

Examples

Usage Notes

Creating and Modifying Boxes and Rectangles

Creating rectangular geometry is a common task. These transformers do so in a variety of ways.

Rectangle Transformers Comparison

Transformer	Use this to...	Transformer Description
Creator	Create one or more new features with box geometry of a specific size and position (when Geometry Object is Box).	Creates features using the parameters supplied, and sends them into the workspace for processing.
2DBoxReplacer	Replace an existing feature’s geometry with a box of a specific size and position.	Replaces feature geometry with a 2D box defined by specified minimum and maximum x and y values.
BoundingBoxAccumulator	Create one rectangle that encompasses all features received.	Creates a rectangular polygon that spans the extents of all input features.
BoundingBoxReplacer	Individually replace the geometry of each feature with a rectangle that covers its extents.	Replaces feature geometry with a box or cube that spans the extents of the feature.
RasterExtentsCoercer	Individually replace the geometry of each raster feature with a rectangle.	Replaces the geometry of input raster features with a polygon covering either the extents of a raster or the extent of data within a raster.
BoundsExtractor	Extract the coordinate values that describe an individual feature’s bounding box (or cube) and store them as attributes.	Extracts a feature’s minimum and maximum coordinate values into attributes.
2DGridAccumulator	Create a series of regularly-spaced rectangles that span the extent of all features (when Type of Grid to Create is Polygons).	Creates a regular grid of points or rectangular polygons that span the extents of all input features.
2DGridCreator	Create a series of regularly-spaced rectangles of a specific size and position (when Type of Grid to Create is Polygons).	Creates a regular grid of points or rectangular polygons of a specified size, position, and coordinate system.
Tiler and RasterTiler	Chop features into a series of rectangular tiles, specified in a similar fashion to the 2DGridAccumulator.	Splits input features into a series of tiles by specifying either tile size (in ground units) or total number of tiles. Splits each input raster into a series of tiles by specifying either a tile size in cells/pixels or the number of tiles.

Configuration

Input Ports

Output Ports

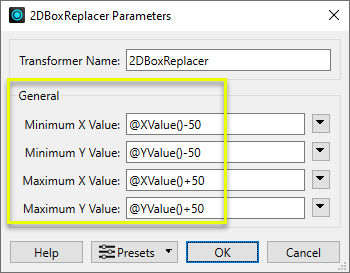

Parameters

General

Minimum X Value	Specify the minimum x value (lower left) of the box.
Minimum Y Value	Specify the minimum y value (lower left) of the box.
Maximum X Value	Specify the maximum x value (upper right) of the box.
Maximum Y Value	Specify the maximum y value (upper right) of the box.
