Reprojector

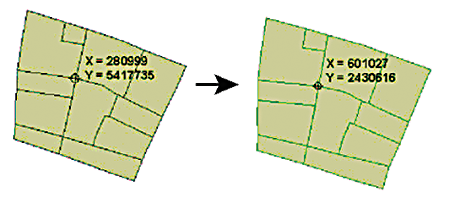

Reprojects feature x and y coordinates from one coordinate system to another.

Typical Uses

Performing simple reprojections, without z value handling.

How does it work?

The Reprojector receives vector, raster, or point cloud features and reprojects their x and y coordinates from one coordinate system to another, generally using the FME (CS-Map) library.

This transformer will honor the Workspace Parameter Reprojection Engine, and will use the Esri Reprojection Engine if it is selected there, with or without an Esri product being installed.

The Source Coordinate System may be either read from the input feature or specified explicitly, and the Destination Coordinate System must be specified. Both may be set by selecting from the Coordinate System Gallery or by name via an attribute value or user parameter.

The Reprojector does not reproject z values.

Dynamic Coordinate Systems

Features may be reprojected to a dynamic Destination Coordinate System - that is, a local coordinate system that is created specifically for each individual feature. This is often used for tasks such as taking measurements or creating geometry in meters or other ground units, on data with geographic (latitude and longitude) coordinates.

There are two types available:

_AZMEA_ (Dynamic Reprojection Equal Area) - Better for preserving area accuracy
_AZMED_ (Dynamic Reprojection Equal Distance) - Better for preserving distance accuracy

In either case, the input feature is reprojected to a local coordinate system centered on its bounding box. Though all the output features will be centered on a common origin (with the exception of features located very near the poles) and appear stacked on top of each other, each one retains the specifics of its reprojection (and so original position), and can be safely reprojected back into a projected or geographic coordinate system.

Note that Z values are not considered, so areas or distances are best preserved for geometry at an ellipsoid height of 0 meters.

Note To calculate and reproject to a single AZMED or AZMEA coordinate system that encompasses all input features, consider using the CommonLocalReprojector.

Rasters

Additional parameters are available for raster features, specifying how the reprojected cells are to be interpolated.

This transformer is not affected by raster band and palette selection.

Examples

Usage Notes

This transformer does not alter z values. For handling elevation or vertical coordinate systems, consider using a CsmapReprojector.
For finer control, including Geographic Transformation selections, consider using a CsmapReprojector or EsriReprojector.
Some geographic areas have their own reprojection libraries and transformers. See Working with Coordinate System Transformers below.
This transformer operates on features with geometry. To reproject coordinates stored as attributes, see the AttributeReprojector or CsmapAttributeReprojector.

Working With Coordinate System Transformers

FME inherently supports coordinate system transformations and reprojections.

Coordinate System Support and Reprojection

Coordinate systems generally have a name and a definition, and the syntax of that definition can vary greatly between both spatial data formats and other coordinate system libraries. Custom and local coordinate systems can also be defined in FME, further complicating matters. For in-depth information, see the Working With Coordinate Systems documentation.

Reprojections are generally done with the FME Reprojection Engine, which is based on the CS-Map coordinate system library. This default can be overridden on a per-workspace basis, using the Workspace Parameters > Translation > Reprojection Engine parameter, and set to Esri. Where appropriate, FME will use the Esri Reprojection Engine if it is selected there, with or without an Esri product being installed.

Coordinate System Support

These transformers perform various coordinate system-related tasks, but do not reproject the data.

CoordinateSystemDescriptionConverter	Looks up coordinate system names and definitions between FME’s internal format and common third-party and open source representations, storing the results as an attribute.
CoordinateSystemExtractor	Retrieves the name of the feature's assigned FME coordinate system into an attribute.
CoordinateSystemRemover	Removes the coordinate system from features, without modifying geometry or coordinates.
CoordinateSystemSetter	Assigns a specified coordinate system to features, without modifying geometry or coordinates.
LocalCoordinateSystemSetter	Assigns a specified local coordinate system to features, without modifying geometry or coordinates.

Coordinate System Reprojection

Different coordinate system libraries (engines) not only contain coordinate system definitions, they also have unique reprojection algorithms. FME’s generic reprojection transformers, in the first table below, default to using the FME (CS-Map) library.

A selection of other libraries is also available, some of which are specific to certain areas of the world or software platforms.

Inherent reprojections, as in a workspace with different input and output coordinate systems selected, default to using the FME (CS-Map) library.

If you are reprojecting explicitly with a transformer in the workspace, using library-specific transformers is recommended. In the case of CsmapReprojector versus the Reprojector (with default engine), the library may be identical, but the CSMapReprojector handles vertical coordinate calculations whereas the Reprojector does not.

Generic Reprojection Transformers

		Library
AttributeReprojector	Reprojects x and y coordinates stored as attributes from one coordinate system to another.	FME (default) or Esri
CommonLocalReprojector	Reprojects one or more features to a local coordinate system centered on the bounding box containing all features.	FME (default) or Esri
ReprojectAngleCalculator	Converts a given angle from one coordinate system to another.	FME (default) or Esri
ReprojectLengthCalculator	Converts a given length from one coordinate system to another.	FME (default) or Esri
Reprojector	Reprojects feature x and y coordinates from one coordinate system to another.	FME (default) or Esri

Library-Specific Reprojection Transformers (Recommended)

		Library (External Links)
CsmapAttributeReprojector	Reprojects x, y, and optionally z coordinates stored as attributes from one coordinate system to another using the CS-MAP library.	CS-Map
CsmapReprojector	Reprojects feature x, y, and optionally z coordinates from one coordinate system to another using the CS-Map library.	CS-Map
EsriReprojector	Reprojects feature coordinates from one coordinate system to another using the Esri reprojection library.	Esri
GridInQuestIIReprojector Great Britain Northern Ireland Republic of Ireland	Reprojects feature coordinates from one coordinate system to another using the Grid InQuestII engine from Ordnance Survey, for use in Great Britain, Ireland, and Northern Ireland.	Grid InQuestII
GtransAttributeReprojector Sweden	Reprojects coordinates stored as attributes from one coordinate system to another using the Gtrans reprojection engine from the National Land Survey of Sweden (Lantmäteriet).	Gtrans
GtransReprojector Sweden	Reprojects feature coordinates from one coordinate system to another using the Gtrans reprojection engine from the National Land Survey of Sweden (Lantmäteriet).	Gtrans
PROJAttributeReprojector	Reprojects coordinates stored as attributes from one coordinate system to another using the PROJ library.	PROJ
PROJReprojector	Reprojects feature coordinates from one coordinate system to another using the PROJ library.	PROJ
ReframeReprojector Switzerland	Reprojects feature coordinates from one coordinate system to another in Switzerland, using the Reframe library from the Federal Office of Topography (swisstopo).	REFRAME

Configuration

Input Ports

Output Ports

Parameters

Coordinate Systems

Source Coordinate System

Specify the coordinate system of the incoming features.

The default is <Read from feature>, which reads the features’ existing coordinate system(s).

Coordinate systems may also be explicitly selected from the FME Coordinate System Gallery, or provided by name via an attribute value or user parameter.

If <Read from feature> is used and an input feature has no coordinate system assigned, the Destination Coordinate System is assigned to it and no reprojection is performed.

Destination Coordinate System

Specify the coordinate system to be reprojected to.

Coordinate systems may be selected from the FME Coordinate System Gallery, or provided by name via an attribute value or user parameter.

Raster

Interpolation Type

Select a method for interpolating reprojected cell values:

Nearest Neighbor	The simplest and fastest method. Values are copied from the nearest cell.
Bilinear	Calculates a weighted average, adjusted for distance, from the four (4) nearest cells.
Bicubic	Calculates a weighted average, adjusted for distance, from the sixteen (16) nearest cells.
Average 4	Calculates a simple average from the four (4) nearest cells. Similar to Bilinear and is useful for numeric rasters such as DEMs.
Average 16	Calculates a simple average from the sixteen (16) nearest cells. Similar to Bicubic and is useful for numeric rasters such as DEMs.

Cell Size

Select a method for resizing cells:

Stretch Cells	The cell size of the raster will be adjusted to maintain the same number of rows and columns in the reprojected raster as there were in the input raster.
Square Cells	The number of rows and columns as well as the spacing will be changed to maintain approximately the same cell ground area and form square cells where the horizontal and vertical cell sizes are equal.
Preserve Cells	Like Square Cells, this option will change both the number of rows and columns and the spacing to maintain cell ground area, but will also try to preserve the original cell aspect ratio, taking into account any warping caused by the reprojection.

Tolerance (cells)

Sets the tolerance, in cells, for approximating reprojected cell locations.

Using the default value of 0.0, every cell will be reprojected.

If a value greater than 0.0 is specified, some cell locations will be approximated. The difference between an approximated cell location and the true cell location should be at most the tolerance value.

For example, if a value of 0.5 is specified, each approximated cell location should be maximum one-half of a pixel away from its true location. Increasing the Tolerance value may improve performance.
