Generalizer

Transforms or measures geometry features based on a specified algorithm.

There are four types of algorithms:

  • Generalizing algorithms: Reduce the density of coordinates by removing vertices.

  • Smoothing algorithms: Determine a new location for each vertex.

  • Measuring algorithms: Calculate the location of points, and return a list of these points (for example, to measure the sinuosity of a feature).

  • Fitting algorithms: Replace the original geometry completely, with a new feature fitted to a specified line (for example, to minimize the orthogonal distance to the original).

Usage Notes

  • Null geometries that are input will be output unchanged.

  • To maintain topologies that involve other features while generalizing, consider using the SherbendGeneralizer transformer.

Configuration

Output Ports

The generalized features are output to this port. They will have all attributes of the original features.

All geometries that contain only non-generalizable geometries (for example, solids, surfaces, or degenerate geometries) are output through this port. They will have all attributes of the original features, and an extra fme_rejection_code attribute.

Parameters

Group By

The default behavior is to use the entire set of input features as the group. This option allows you to select attributes that define which groups to form. Each set of features which have the same value for all of these attributes will be processed as an independent group.

Complete Groups



Select the point in processing at which groups are processed:

When All Features Received

This is the default behavior. Processing will only occur in this transformer once all input is present.

When Group Changes (Advanced)

This transformer will process input groups in order. Changes of the value of the Group By parameter on the input stream will trigger processing on the currently accumulating group. This may improve overall speed (particularly with multiple, equally-sized groups), but could cause undesired behavior if input groups are not truly ordered.

There are two typical reasons for using When Group Changes (Advanced) . The first is incoming data that is intended to be processed in groups (and is already so ordered). In this case, the structure dictates Group By usage - not performance considerations.

The second possible reason is potential performance gains.

Performance gains are most likely when the data is already sorted (or read using a SQL ORDER BY statement) since less work is required of FME. If the data needs ordering, it can be sorted in the workspace (though the added processing overhead may negate any gains).

Sorting becomes more difficult according to the number of data streams. Multiple streams of data could be almost impossible to sort into the correct order, since all features matching a Group By value need to arrive before any features (of any feature type or dataset) belonging to the next group. In this case, using Group By with When All Features Received may be the equivalent and simpler approach.

Note  Multiple feature types and features from multiple datasets will not generally naturally occur in the correct order.

As with many scenarios, testing different approaches in your workspace with your data is the only definitive way to identify performance gains.

Algorithm

The algorithm that you choose determines which transformer parameters are enabled in the transformer dialog.

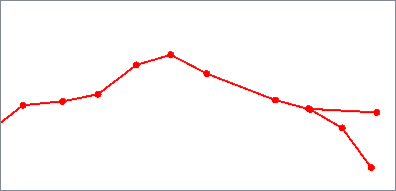

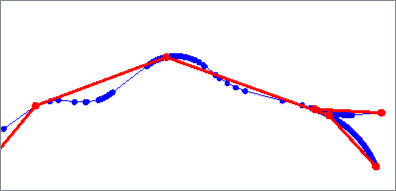

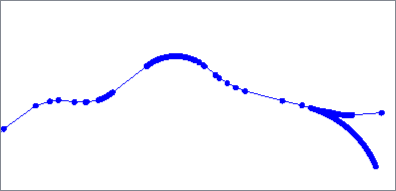

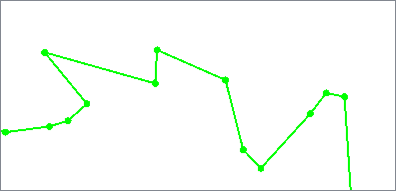

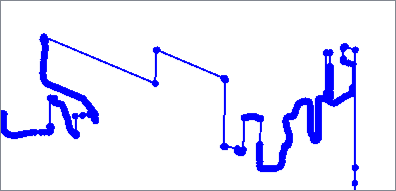

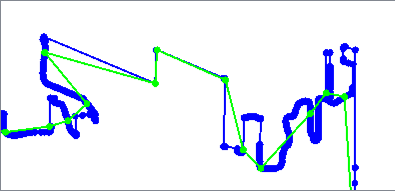

Douglas

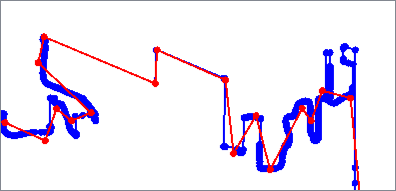

The Douglas-Peucker algorithm will remove vertices which cause a deviation of less than the Generalization Tolerance, but the location of remaining vertices are not altered. Thus, this algorithm is good at reducing the number of points in a line, it is not very good at preserving the shape or the spatial relationship of the line relative to other entities. When used on polygons, the start point is never removed.

Corresponding parameters:

  • Generalization Tolerance
  • Preserve Shared Boundaries
  • Shared Boundaries Tolerance
  • Preserve Path Segments

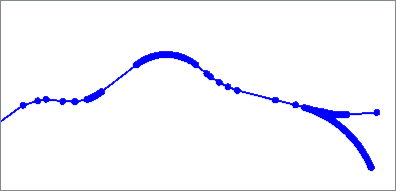

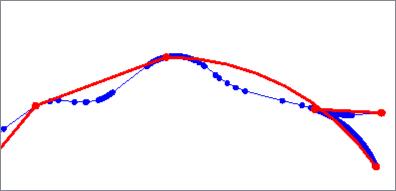

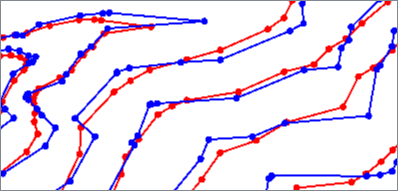

Douglas With Arc Fitting

The Douglas With Arc Fitting algorithm performs the same operations as the Douglas algorithm, but it will also attempt to fit circular arcs to the data, often resulting in fewer vertices. Any arcs added will be within the Generalization Tolerance of the original input. This algorithm will always remove a number of points that is more than or equal to the number that would be removed by Douglas, however, the result may be an IFMEPath instead of an IFMELine.

Corresponding parameters:

  • Generalization Tolerance
  • Preserve Shared Boundaries
  • Shared Boundaries Tolerance
  • Preserve Path Segments

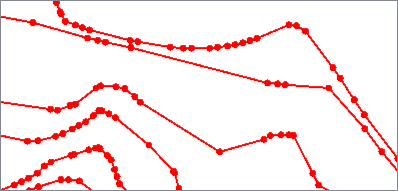

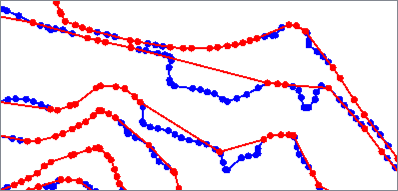

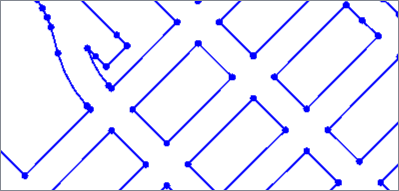

Thin

The Thin algorithm will remove vertices that are less than the Generalization Tolerance distance away from an adjacent vertex. The begin and end points are never moved, unless the entire length of the feature being thinned is less than the tolerance, in which case the feature is replaced by a point feature holding the final coordinate.

Corresponding parameters:

  • Generalization Tolerance

Thin No Point

The Thin No Point algorithm will remove vertices that are less than the Generalization Tolerance distance away from an adjacent vertex. The begin and end points are never moved, even when the entire length of the feature being thinned is less than the tolerance, in which case the feature is replaced by a linear feature connecting the first point to the last point.

Corresponding parameters:

  • Generalization Tolerance
  • Preserve Shared Boundaries
  • Shared Boundaries Tolerance
  • Preserve Path Segments

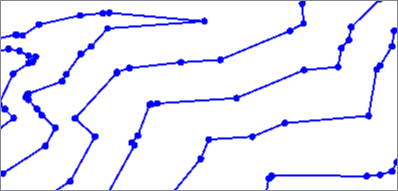

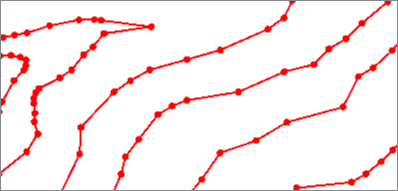

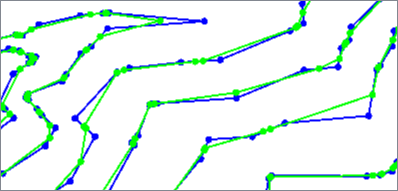

Deveau

The Deveau algorithm removes vertices which contribute less to the overall shape of the feature, and may introduce new vertices at positions not originally in the feature as it works. The inherent behavior of the algorithm is such that it invalidates the z coordinate of the vertices, and any measures. Therefore the output features will always be 2D, and have no measures on them. It requires the Smoothness Factor parameter and the Sharpness Angle parameter to be specified.

Corresponding parameters:

  • Generalization Tolerance
  • Preserve Shared Boundaries
  • Shared Boundaries Tolerance
  • Preserve Path Segments
  • Smoothness Factor
  • Sharpness Angle

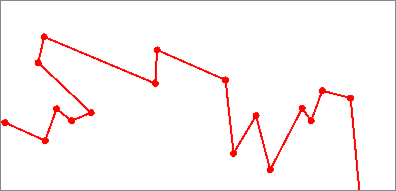

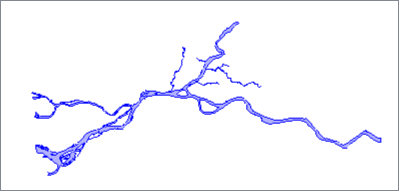

Wang

The Wang algorithm will iteratively combine, eliminate and exaggerate bends until the input line feature has no bend that is smaller than the given tolerance value.

Corresponding parameters:

  • Generalization Tolerance
  • Preserve Shared Boundaries
  • Shared Boundaries Tolerance
  • Preserve Path Segments

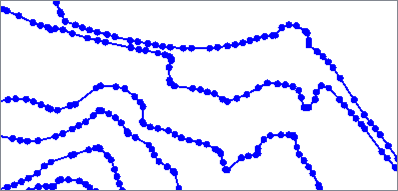

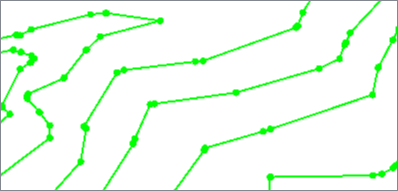

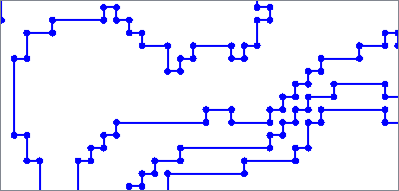

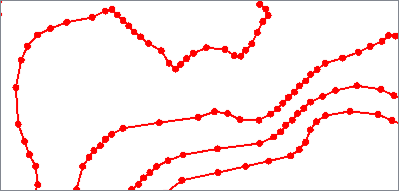

McMaster

The McMaster algorithm calculates a new location for each point by first taking the average value of the x and y coordinates of the point and a number of neighboring points. It then slides the averaged point towards the original point according to a specified displacement value. The overall effect is that each point will be pulled towards its neighboring points.

Corresponding parameters:

  • Preserve Shared Boundaries
  • Shared Boundaries Tolerance
  • Preserve Path Segments
  • Number of Neighbors
  • Displacement Percentage

McMaster Weighted Distance

The McMaster Weighted Distance algorithm performs the same operations as the McMaster algorithm only it uses inverse distance weighting to take into account the distance from each neighbor to the point being moved. The overall effect is that points further away will have less "pull" than points close by.

The Weighting Power parameter is used by the McMaster Weighted Distance algorithm only. It is used to determine the weight of each neighboring point.

Note  For lines, the McMaster algorithms do not change the first and last N points (where N is the number of neighbors), because they don't have enough neighbors for the averaging calculations to work with. For polygons, a wrap-around is used so each point in a polygon will be changed. In the case of adjacent polygons and the Preserve Shared Boundaries option, collinear portions of their boundaries will be smoothed together. The remaining parts of their boundaries will be smoothed as lines. This means that no wrap-around will be used for adjacent polygons.

Corresponding parameters:

  • Preserve Shared Boundaries
  • Shared Boundaries Tolerance
  • Preserve Path Segments
  • Number of Neighbors
  • Displacement Percentage
  • Weighting Power

NURBfit

The NURBfit algorithm will fit lines using B-Spline curves of given polynomial degree. The resulting lines will follow these curves with given segment length. The higher the degree, the smoother the line. An example of usage is smoothing contour lines to remove spikes and simulate the work of a cartographic craftsman.

Corresponding parameters:

  • Preserve Shared Boundaries
  • Shared Boundaries Tolerance
  • Preserve Path Segments
  • Degree of Basis Polynomial
  • Segment Length

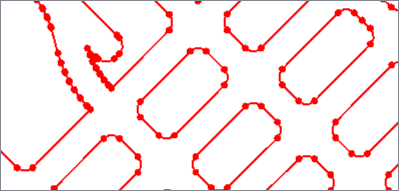

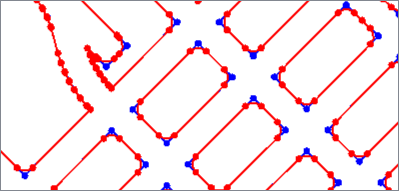

Fillet

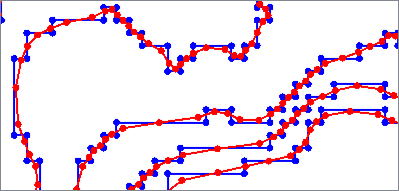

The Fillet algorithm will replace linear corners in a line with arc corners with the given fillet radius. If an arc with the specified fillet radius would not fit on a corner, that corner will be skipped.

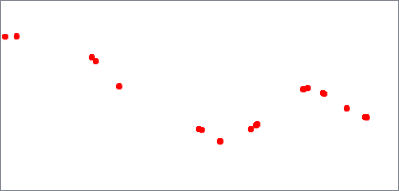

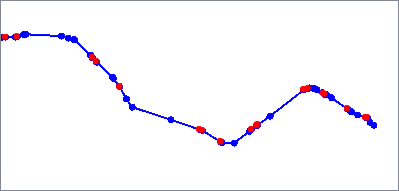

Inflection Points

The Inflection algorithm will calculate the location of the inflection points along a line and return the list of these points. Inflection points are measures of the sinuosity of a line.

Corresponding parameters:

  • Number of Neighbors

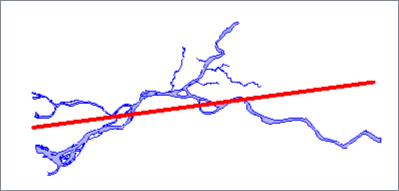

Orthogonal Distance Regression

This algorithm replaces the feature's geometry with a line that minimizes the orthogonal distance between it and the original geometry's points. Orthogonal distance means the shortest (perpendicular) distance between a point and a line.

Corresponding parameters:

  • None

Generalization Tolerance

This parameter is used by all four generalizing algorithms. It is measured in ground units (units of measure of the feature coordinates). The value may not be negative.

Note  Note that this value is driven by the coordinate system of the features passing through the transformer.

Preserve Shared Boundaries

No: Each feature will be treated and generalized individually without regard to its neighboring features. If the area features originally formed a coverage, there will be gaps and overlaps in the coverage. If you want the coverage to be maintained while doing area boundary generalization, choose Yes.

Yes: Coverage topology will be maintained while doing area boundary generalization. The entire coverage of area features must not overlap. If the area features overlap, then you should choose No, or use the AreaOnAreaOverlayer first to create a coverage. In some situations, you can also use the Snapper in VERTEX mode either before, after, or instead of this transformer.

This transformer computes topology for the coverage, generalizes the individual arcs, and then recreates the area features. This option will take longer for areas because it computes the arc/node topology, generalizes the individual arcs, and then recreates the areas.

Shared Boundaries Tolerance

The minimum distance between boundaries in 2D before they are considered shared, in ground units. If the tolerance is Automatic, a tolerance will be automatically computed based on the location of the input geometries.

Preserve Path Segments

No: Path segments may be joined to form a new line.

Yes: Path segments will not be joined to form a new line.

Smoothness Factor

This parameter controls the number of simultaneous wedges considered when floating bands around the points in the set. The larger this value is, the more aggressive the generalization. The value must be an integer from 1 to 30.

Sharpness Angle

This parameter sets the tolerance for spikes that will be blunted. Vertex points at angles less than the value given from the previous two points are not moved. The angle is measured in degrees, and must be between 0.0 and 180.0.

Number of Neighbors

This parameter specifies the number of neighbors to consider for each point. For example, a value of 2 specifies that the 2 points to the left of each point, the point itself, and the 2 points to the right will be considered. For the Inflection Points algorithm, this parameter specifies the number of neighboring points on either side that will affect the inflection calculation. A higher number has the effect of smoothing the line and may result in fewer inflection points. The value must be a non-negative integer. A value of 0 means no filtering.

Displacement Percentage

This parameter specifies the location between the original and average points to move the point. For example, a value of 50 will place the point at the halfway point between the averaged point and the point's original location. The value must be between 0.0 and 100.0.

Weighting Power

This parameter is used by the McMaster Weighted Distance algorithm only. It is used to determine the weight of each neighboring point. The value may not be negative.

Degree of Basis Polynomial

This parameter specifies the degree of the polynomial used to approximate the curve. The higher the degree, the smoother the line. The value must be an integer with value at least 2.

Segment Length

This parameter specifies the length of the output segments. If this is set to 0, then the output curve will have 10x the number of points in the input. The value may not be negative.

Fillet Radius

This parameter specifies the radius of the arc to use when generating filleted corners. The value must be a finite number greater than zero.

Editing Transformer Parameters

Transformer parameters can be set by directly entering values, using expressions, or referencing other elements in the workspace such as attribute values or user parameters. Various editors and context menus are available to assist. To see what is available, click beside the applicable parameter.

Defining Values

There are several ways to define a value for use in a Transformer. The simplest is to simply type in a value or string, which can include functions of various types such as attribute references, math and string functions, and workspace parameters.

Using the Text Editor

The Text Editor provides a convenient way to construct text strings (including regular expressions) from various data sources, such as attributes, parameters, and constants, where the result is used directly inside a parameter.

Text Editor

Using the Arithmetic Editor

The Arithmetic Editor provides a convenient way to construct math expressions from various data sources, such as attributes, parameters, and feature functions, where the result is used directly inside a parameter.

Arithmetic Editor

Conditional Values

Set values depending on one or more test conditions that either pass or fail.

Parameter Condition Definition Dialog

Content

Expressions and strings can include a number of functions, characters, parameters, and more.

When setting values - whether entered directly in a parameter or constructed using one of the editors - strings and expressions containing String, Math, Date/Time or FME Feature Functions will have those functions evaluated. Therefore, the names of these functions (in the form @<function_name>) should not be used as literal string values.

String Functions

These functions manipulate and format strings.

Special Characters

 A set of control characters is available in the Text Editor.

Math Functions

Math functions are available in both editors.
Date/Time Functions Date and time functions are available in the Text Editor.

Math Operators

These operators are available in the Arithmetic Editor.

FME Feature Functions

These return primarily feature-specific values.

FME Parameters

FME and workspace-specific parameters may be used.
Creating and Modifying User Parameters Create your own editable parameters.

Table Tools

Transformers with table-style parameters have additional tools for populating and manipulating values.

Row Reordering

Enabled once you have clicked on a row item. Choices include:

  • Add a row
  • Remove a row
  • Move current row up one
  • Move current row down one
  • Move current row to top
  • Move current row to bottom

Cut, Copy, and Paste

Enabled once you have clicked on a row item. Choices include:

  • Cut a row - delete and copy to clipboard
  • Copy a row to the clipboard
  • Paste a row from the clipboard

Cut, copy, and paste may be used within a transformer, or between transformers.

Filter

Start typing a string, and the matrix will only display rows matching those characters. Searches all columns. This only affects the display of attributes within the transformer - it does not alter which attributes are output.

Import

Import populates the table with a set of new attributes read from a dataset. Specific application varies between transformers.

Reset/Refresh

Generally resets the table to its initial state, and may provide additional options to remove invalid entries. Behavior varies between transformers.

Note: Not all tools are available in all transformers.

For more information, see Transformer Parameter Menu Options.

Transformer History

This transformer replaces the AreaGeneralizer, AreaSmoother, LineGeneralizer and LineSmoother.
