Snapper

Brings lines, segments, end points or vertex points of features together if they are within a certain distance of each other and (optionally) if they have one or more attributes in common.

How does it work?

Once all input features are read, the Snapper proceeds through them one by one, snapping each against all features in the dataset. Features will snap to the nearest neighbor, up to the specified Snapping Distance.

Each feature is only snapped once, at which point it becomes a static magnet that attracts other features. This means that some features will snap to one of those magnets rather than their actual nearest neighbor.

It also means that features won't move more than the specified snap distance, as they stay in place after snapping once.

A short cleanup step is performed after snapping. This step will remove duplicate points, and may create aggregates to preserve overlapping, directed segments.

Any feature that undergoes dimensional collapse as a result of being snapped will be output through the Collapsed port.

Example

The example below illustrates end points of two line features snapping together.





The example below illustrates an endpoint and a vertex of a line snapping together.

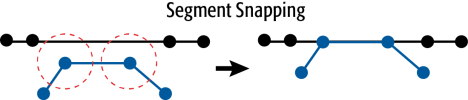

The example below illustrates vertices of a segment snapping to another segment.



Usage Notes

  • You can clean up a dataset by using a Snapper before trying more complex actions, such as building polygons. Other transformers that are often used in this context are the LineExtender and Intersector.
  • The AnchoredSnapper transformer provides slightly different functionality by identifying a set of features which will not be moved and will be snapped to by another set of features.

Configuration

Output Ports

Features whose geometry is changed by the transformer.

Features that leave the transformer without being changed.

  • If a line or area feature snaps down to a single location, it will be output as a Point geometry, through the Collapsed port.
  • If an Aggregate, MultiArea, or MultiCurve geometry has any parts snap down to a single location, a Point geometry for each part will be bundled up into a MultiPoint geometry and output through the Collapsed port. The remaining parts which did not snap down to a single location (if any) will be output as a group through the Snapped port.

Features whose geometry is unsnappable (for example, having a non-finite coordinate) will be rejected and output via this port.

Rejected features will receive an explanatory fme_rejection_code attribute.

Rejected Feature Handling: can be set to either terminate the translation or continue running when it encounters a rejected feature. This setting is available both as a default FME option and as a workspace parameter.

Parameters

Group By

If Group By attributes are selected, features are only snapped to other features with the same values in the group by attributes.

Complete Groups

Select the point in processing at which groups are processed:

When All Features Received

This is the default behavior. Processing will only occur in this transformer once all input is present.

When Group Changes (Advanced)

This transformer will process input groups in order. Changes of the value of the Group By parameter on the input stream will trigger processing on the currently accumulating group. This may improve overall speed (particularly with multiple, equally-sized groups), but could cause undesired behavior if input groups are not truly ordered.

There are two typical reasons for using When Group Changes (Advanced) . The first is incoming data that is intended to be processed in groups (and is already so ordered). In this case, the structure dictates Group By usage - not performance considerations.

The second possible reason is potential performance gains.

Performance gains are most likely when the data is already sorted (or read using a SQL ORDER BY statement) since less work is required of FME. If the data needs ordering, it can be sorted in the workspace (though the added processing overhead may negate any gains).

Sorting becomes more difficult according to the number of data streams. Multiple streams of data could be almost impossible to sort into the correct order, since all features matching a Group By value need to arrive before any features (of any feature type or dataset) belonging to the next group. In this case, using Group By with When All Features Received may be the equivalent and simpler approach.

Note  Multiple feature types and features from multiple datasets will not generally naturally occur in the correct order.

As with many scenarios, testing different approaches in your workspace with your data is the only definitive way to identify performance gains.

Snapping Type

When this parameter is set to End Point Snapping, the transformer:

  • Snaps lines together if the distance between their end points are within the specified Snapping Distance.
  • Snaps point features to points or lines if their distances are within the specified Snapping Distance.
  • Area features will not be altered by the transformer when run in this mode.
  • When two features are snapped together, the feature that entered the factory most recently is the one that is modified

When this parameter is set to Vertex Snapping, the transformer does the following:

  • Snaps vertices of lines together if their distances are within the specified Snapping Distance.
  • Snaps point features to points or lines if their distances are within the specified Snapping Distance.
  • Area features are altered by this operation as its vertices are snapped.
  • When two features are snapped together, the feature that entered the factory most recently is the one that is modified.

When this parameter is set to Segment Snapping, the transformer does the following:

  • Snaps vertices of lines together if their distances are within the specified Snapping Distance.
  • Snaps vertices of segments to other segments if their distances are within the specified Snapping Distance at any point along the segment. New vertices will be introduced to the segment where the new snapped vertex has been moved to.
  • Segments which cross other segments will have new vertices introduced at the point of intersection, but the segments will remain unbroken.
  • Area features are altered by this operation as its vertices and segments are snapped.
  • If a segment and a point are both within Snapping Distance, the transformer will snap to a vertex in preference to a segment, even when the segment is closer.

Snapping Dimension

Snapping Dimension specifies whether the Z dimension will be considered while snapping:

  • 2D: Snapping Distance is measured in the 2D plane and snapped points will not have their Z values modified.
  • 3D: Snapping Distance is measured in 3D and snapped points will have their Z values connected.

If 2D features enter when 3D is selected, z values are considered zero (0).

Snapping Distance

Snapping Distance specifies the distance, in ground units, that the snapping occurs between features.

Add Additional Vertex

This parameter applies only when the end point of a feature is being snapped. It controls how lines are modified when they are snapped.

  • NEVER: the endpoint of a line is moved when it is snapped and no additional vertex is added.
  • ALWAYS: the original end point (start point) of the line becomes the second from the end (start) and a new vertex is added to complete the snap.
  • FORWARD_ONLY: a new vertex is added only when doing so creates an angle greater than 90 degrees with the original line segment. In this case, if adding the vertex would cause a less than 90-degree angle, the old end point is still moved.

Save Short Lines

Any features entering the transformer whose length is less than or equal to the Snapping Distance would normally collapse to a point. Enabling this setting will instead ensure that lines shorter than the Snapping Distance are unmodified, and are output as Untouched.

Snapping Priority

An optional numeric value that should be specified as an attribute or arithmetic expression as it will have no effect if it is constant for all features.

During snapping, a feature will only snap to neighbors with a priority value equal to or greater than its own, and will prefer the neighbor with the highest priority.
