Offsetter

Adds offsets to the feature's coordinates.

After you connect the transformer, you can enter parameter values as a number or pick the value of a feature attribute by picking Set to Attribute Value from the Parameter menu.

The feature will be shifted by the amounts specified.

This transformer works with both raster and vector data.

This transformer supports raster band and palette selection. The RasterSelector can be used to modify selection.

Examples

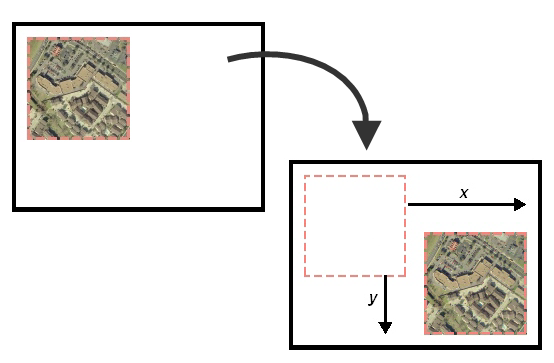

This example shows an image offset using the X Offset and Y Offset parameters:

Configuration

Output Ports

The dynamic <Rejected> port appears when a parameter is set to a non-literal value that might make processing impossible.

For example, if a numeric parameter such as Line Width, Count Start, or Decimal Places is set to an expression, attribute value, or user parameter, it is possible to pass in a non-numeric value that cannot be used. Decimal Places = Cat cannot be processed, so the feature will be output via this port.

Rejected features will have an fme_rejection_code attribute explaining the reason for rejection.

Rejected Feature Handling: can be set to either terminate the translation or continue running when it encounters a rejected feature. This setting is available both as a default FME option and as a workspace parameter.

Parameters

Mode

The mode in which to offset feature coordinates.

Cartesian Coordinates

X Offset, Y Offset, and Z Offset

A separate offset must be set for each of the X, Y, and Z axes. If the input feature is 2D and a Z offset is specified, the feature is converted to 3D, and the Z offset is applied from a starting Z value of zero. If the input feature is a raster, only X and Y offset values will cause coordinate location shifts. The Z offset will cause the values in the cells of the raster to be offset by the specified amount for each selected band.

Polar Coordinates

Distance

The distance to offset the feature.

Polar Angle

Angle in degrees CCW from the positive X-axis.

Spherical Coordinates

Distance

The distance to offset the feature.

Azimuth

Angle in degrees CW from the positive Y-axis.

Altitude

Angle in degrees from the XY plane. The angle between the XY plane and the positive Z-axis is 90 degrees.

Component

Specifies a component to offset on point cloud features. Note that the x, y, and z components can be offset using the X Offset, Y Offset, and Z Offset parameters. This parameter is intended for non-spatial components (for example, intensity).

If the same component occurs multiple times in the table, each of the Offset values will be added to that component's value.

Offset

The offset that will be applied to the corresponding point cloud component.
