Esri Geodatabase (File Geodb Open API) Writer Feature Type Parameters

To access feature type parameters, click the gear icon on a feature type in the workspace. This opens the Feature Type Parameter Editor.

Tip  To always display the editor in FME Workbench, you can select View > Windows > Parameter Editor.

General

All feature types share similar General parameters, which may include Feature Type Name, Reader or Writer information, and Geometry.

In most Writer Feature Type parameter dialogs, you can also control Dynamic Schema Definitions. Some database formats accept Table or Index Qualifier prefixes on the output table feature type.

Table Settings: General

This parameter specifies how features will be written into the destination table. Supported feature operations are described below. Note that the described behavior can be dependent on the selected options, as well as the underlying table properties.

Option

Description

If the Row Does Not Exist

If the Row Exists

Insert

The writer appends a new row to a table using input feature attributes.

The writer creates a new row using input feature attributes.

Not always applicable: if the table does not have a unique key or it has an automatically generated unique key, insertion is always possible.

The database cannot violate its key constraints; therefore, errors can occur on row insertion. For example, if there is a unique key and a user specifies the value with the feature, and the feature already exists, then FME Workbench logs an error. This error might be in the form of a rejected feature, or the database may stop processing altogether.

Update

The writer updates existing row(s) in a table using input feature attributes.

A selection method must be specified in the Row Selection group.

The writer rejects the input feature or logs an error if it is unable to continue.

The writer only changes values of the existing row(s) corresponding to the input feature that differ from the input feature.

Upsert

The writer appends a new row or updates an existing row(s) using input feature attributes and/or geometries.

A selection method must be specified in the Row Selection group.

The writer creates a new row using input feature attributes and/or geometries.

The writer changes values of the existing row(s) corresponding to the input feature that differ from the input feature.

It leaves other attributes untouched.

Delete

The writer deletes an existing row(s) in a table.

A selection method must be specified in the Row Selection group.

The writer rejects the input feature or logs an error if it is unable to continue.

The writer deletes existing row(s) corresponding to the input feature.

fme_db_
operation

The feature operation will be determined by the attribute fme_db_operation on each input feature.

A selection method must be specified in the Row Selection group.

The value of fme_db_operation will be processed according to the steps below.

Note   The processing steps listed below depend on a format's available Feature Operation options.
  • If the value is null, empty, or missing, it will be treated as an Insert.
  • The value will next be matched to Insert, Update, Upsert, Put, and Delete, case-insensitively.
  • If there is no match, the feature will be rejected.
  • If there is a match, the matched feature operation will be performed on the feature.

Note about earlier FME versions: To use fme_db_operation, you must set Feature Operation to this option. In previous versions of FME, you could set fme_db_operation when the destination feature type was set to Insert, Update, Upsert, or Delete. Doing this now will cause feature rejection.

 The action depends on the operation; however, in general, if nothing is specified, the value is treated as an Insert. The value is treated as an Insert.

Controls how the feature type handles destination tables:

  • Use Existing – Write to an existing table If the destination table does not exist, the translation will fail.
  • Create If Needed – Create the destination table if it does not exist.
  • Drop and Create – (This option is not available in all formats.) Drop the destination table if it exists, and then create it. The writer will drop and re-create the table before writing any features to it. Tables will be overwritten when the first input feature is processed. If no features are sent to a feature type, then the corresponding table will not be overwritten.
  • Truncate Existing – (This option is not available in all formats.) If the destination table does not exist, the translation will fail. Otherwise, delete all rows from the existing table.

This option tells the writer whether to update or skip spatial column(s) when updating features:

  • Yes – The spatial column(s) specified by the user will be updated. IFMENulls will be written as null values, and will replace existing spatial values.
  • No – No spatial columns will be updated.

Feature Operation Option

Row Selection

Insert

Row Selection is ignored.

Update, Upsert, Delete

(Options may differ depending on a format's available Feature Operation options.)

A Row Selection condition needs to be specified for selecting which rows to operate on.

This parameter group offers two methods to construct the selection condition:

Match Columns

The columns specified in the corresponding column picker dialog will be used for matching destination rows. All matching rows will be selected for update, upsert, or delete. If any feature attributes corresponding to the specified match columns contain null or missing values, the feature will be rejected.

Note  This is the only supported method for Upsert feature operation.

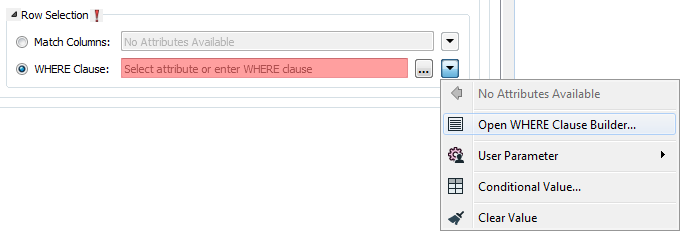

WHERE Clause

This parameter opens a WHERE Clause Builder. You can also type a WHERE clause inline, without launching the Builder. It is optional to start the clause with the word WHERE.

The WHERE Clause Builder makes it easy for users to reference feature attribute values, destination table columns, and invoke FME functions. The WHERE clause is first evaluated as an FME expression, before being passed onto the destination database.

If the WHERE clause is incorrect or if its evaluation results in failure, the translation will fail. Otherwise, if the WHERE clause passes FME evaluation but it is SQL invalid, the feature will be rejected or the translation will fail.

For advanced users, conditional FME expressions created through the Conditional Value editor can be used to create WHERE clauses.

Tip  You can set the WHERE Clause to an attribute. This supports workspace migration and existing workflows involving fme_where. (Direct support for fme_where has been deprecated.) To advanced users who are accustomed to using fme_where, if Feature Operation is set to Update, Upsert, Delete, or fme_db_operation, an fme_where attribute that conflicts with Match Columns or WHERE Clause will result in feature rejection.

Table Creation

Specifies the name of the column containing object IDs for the current table or feature class.

If the value conflicts with a user attribute, then the writer will change the value for this field (by appending a numeric suffix) and log a warning.

Specifies the alias for the object IDs column for the current table or feature class. The alias is used in ArcMap (and possibly in other ArcGIS products) when viewing data; the object ID column will be labeled by its alias.

Specifies the alias for the shape data column. This applies only to feature classes.

When viewing data in ArcMap (and possibly in other ArcGIS products), the shape data column will be labeled by its alias. The default value is SHAPE.

Specifies the configuration keyword. See ArcGIS documentation for additional details.

Specifies the xy tolerance for the feature class.

By default, the File Geodatabase API determines the value based on the coordinate system.

Specifies the z tolerance for the feature class.

This is only relevant if the data includes z values.

Specifies the m tolerance for the feature class.

This is only relevant if the data includes default measure values.
