Upload to SFTP Server

The SFTP external action receives messages and uploads files over a Secure Shell (SSH) connection to specified SSH File Transfer Protocol (SFTP) hosts.

The SFTP external action has two output ports. The success port (✔) can send a message if the upload is successful. The failure port (x) can send a message if the upload fails.

Parameters

Note: See also Working with Parameters in Automations Workflows.

Tip: To test that your parameters work as expected, click Validate.

  • Host: The SFTP host name.
  • Port: The SFTP port number. The default is 22.
  • Username: The SFTP user name for authentication.
  • Password: The SFTP user password for authentication.
  • Verify Host Keys: Whether or not to verify the host key for the server connection.
  • Path to Known Hosts File: If Verify Host Keys is Yes, the path to the known_hosts file that contains the public keys for any servers you wish to connect to. If the known_hosts file is saved to a Resources directory, click the ellipsis (...) and select the file. Otherwise, enter the file path directly. File paths must use forward slashes (/) or escaped backslashes (\\).

    • Note: A known_hosts file contains public keys for computers you connect to via SSH. To obtain a public key and insert it into the known_hosts file, run the following command in OpenSSH: ssh-keyscan -t rsa <hostname> > <path_to_known_hosts_file>. Alternatively, contact your system administrator.

    For more information about OpenSSH, and to install, see http://www.openssh.com/.

  • Destination Path: The destination path to upload the file.
  • Source Path: The source file to upload. If the source file is saved to a Resources directory, click the ellipsis (...) and select the file. Otherwise, enter the file path directly. File paths must use forward slashes (/) or escaped backslashes (\\).

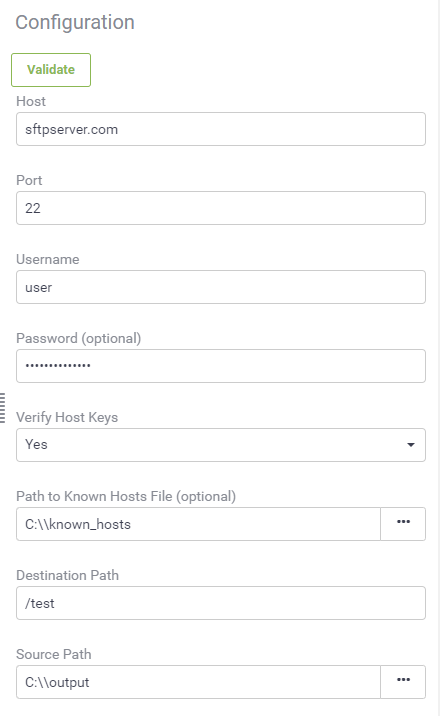

Example

Mouse-over to view:

Output Keys

See Also

Tip: To view the output keys from upstream components, click Show Upstream Keys.

Key Description
time Event time
source Event type
file.path (Success port only) File path
error.type (Failure port only) Error type
error.message (Failure port only) Error message
