Transformers

Select Tools > FME Options and click the Transformers icon.

Display Options

Show transformer version in tooltip

With new releases of FME, transformers are sometimes upgraded to include new functionality. If you have a large workspace whose history spans multiple FME versions, it may also span multiple transformer versions.

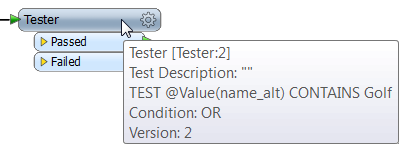

Previous versions of transformers will work the same way they always did, but you might also find it useful to enable transformer tooltips to show the transformer version (especially if you have different versions of the same transformer). In this example, the transformer version is 2:

Use Drag-and-Insert Transformers

Enables a feature that allows you to drop a transformer onto an existing connection. The selections for multiple input ports and multiple output ports will be the default port connections.

Quick Add Options

Show Quick Add on first keypress: Enables the Quick Add search functionality on the Workbench canvas.
Auto connect after Quick Add: If you select a Feature Type before initiating the Quick Add search, the transformer will connect automatically to the feature type.
Quick Add placement follows mouse: The transformer will be placed underneath your cursor.

Editor Preferences

These settings apply to Transformer Parameter menus:

Use Advanced Editor: This setting determines which text editor will open by default when you select Open Editor.
Replace tabs with spaces: Replace tab characters with spaces.
Default Indentation Width: Sets the number of spaces used to replace tabs. The default is 4.
