Example Email Publication

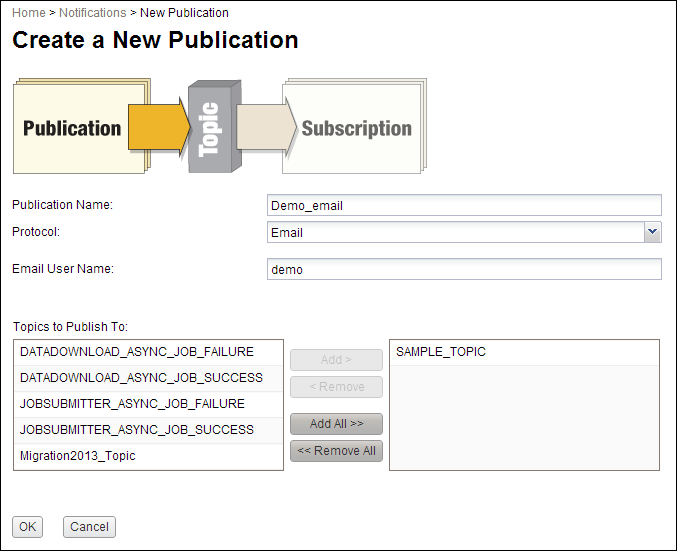

The following example Email publication receives email messages at demo@myserver, where myserver is the host name, and publishes notification messages to topic SAMPLE_TOPIC.

Note:  Email addresses cannot be duplicated across Email publications. There must be a unique email address for each email publication. Email addresses are case-insensitive.

Notification Content

The notification content that is generated by the email publisher includes the following keywords:

• fns_type – The value is “email_publisher” to identify the message is being relayed via the Email publisher.
• email_publisher_from – The email address of the email client that sent the mail.
• email_publisher_to – The email address that received the email (The same as what is configured in the Email publication).
• email_publisher_subject – The email subject
• email_publisher_content{n} – The email message content. Multiple "contents" appear in conjunction with multiple "content types," and have a suffix starting at {0}, {1}, {2}, and so on.
• email_publisher_content_type{n} – The email message content type. Multiple content types have a suffix starting at {0}, {1}, {2}, and so on. The most common content types are text/plain and text/html.
• email_publisher_sent – The date the email was sent
• email_publisher_received – The date the email was received
• email_publisher_attachment{n} – The attachment directory. Multiple attachments have a suffix starting at {0}, {1}, {2}, and so on. Forward slashes are supported. Backslashes must be escaped as double blackslashes.

The following is a sample JSON notification message published by the Email publisher upon receiving an email to address 'demo@somehost.com':

{

"fns_type": "email_publisher",

"email_publisher_to": "demo@somehost.com",

"email_publisher_subject": "MIME message from sender",

"email_publisher_content{0}": "Testing Email",

"email_publisher_content_type{0}": "text/plain",

"email_publisher_from": "sender@somehost.com",

"email_publisher_received": "Thu May 17 11:15:46 PDT 2012",

"email_publisher_sent": "Thu May 17 11:15:46 PDT 2012",

"email_publisher_attachment{0}": "C:\\Temp\\demo246129673106713_canada.xsd"

}

Note:  The keywords of the above JSON message can be customized by changing the config.xml file. No code changes are required. For more information, see Email Publisher Settings.
